AMS 1561

FLEXIBLE MULTIPURPOSE LOUDSPEAKER
  • Arrayable Multipurpose Speaker
  •  1×15” LF driver, 1×1.4” HF driver on a rotatable CD horn.
z

730 W nominal / 1460 W continuos.

130 dB continuous /136 dB peak.

g

8 Ohm

51 kg

The AMS1561 is a full range high output 3 way speaker comprising the highest requirement for quality, response and spl level. Speaker houses a 15” driver charged with a proprietary horn including a phase corrector device attached to the speaker, a 6 ½”mid-high horn loaded and phase corrected speaker plus a 1” exit HF compression driver, offering an unprecedented fidelity, clarity, purity, and breathtaking, even at highs SPLs.

System can be supplied in mono, bi or triamplified way, as well as in selfpowered active version (PCC). The AMS1561 can be used as standalone unit or clustered into array (vertical or horizontal).

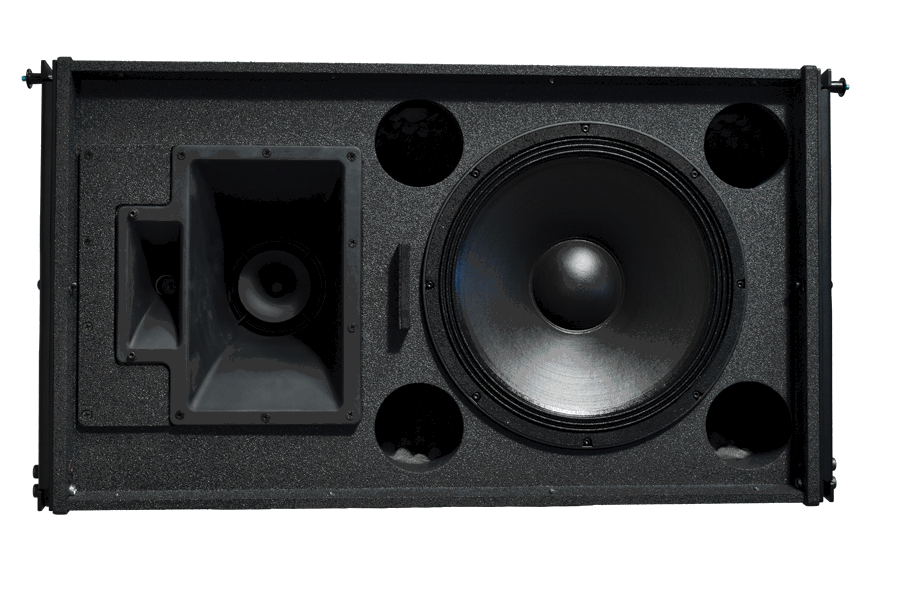

The cabinet features a 90° rotatable mid high section. This allows the enclosure to be deployed in either a vertical or horizontal array configuration.

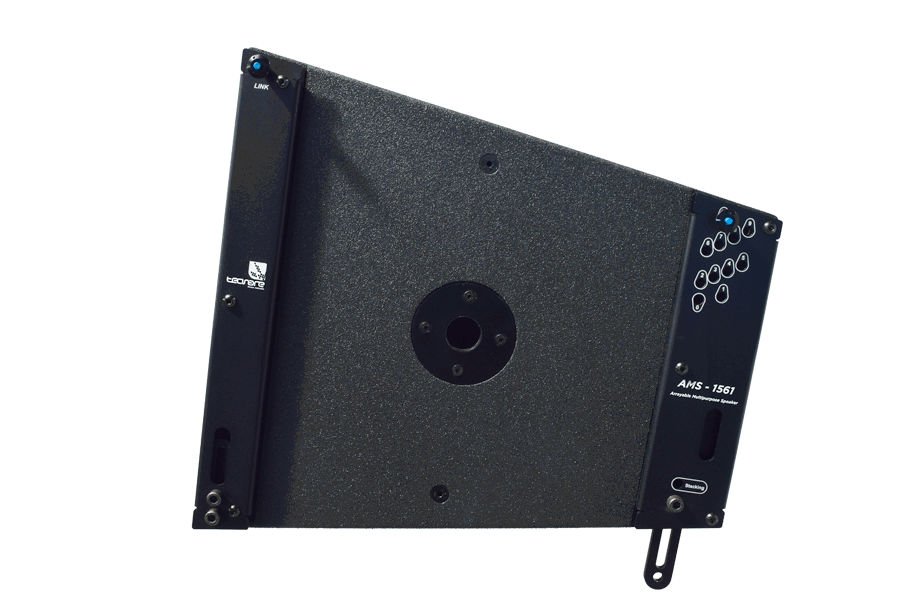

The box houses multiple internal rigging hardware fot array stacking, including facilities for ground-support, truss and wall mounting, handles, pole mount socket, and Speakon NL4 connectors.

The enclosure has been made with the latest techniques ensuring a perfect and rigid construction.

Weatherized finish is provided, as the cabinet is coated with rugged Durawound texture finish and protected with specially treated grills. The system’s choice can be passive (AMS1561), and self-powered  A version with DSP fixed in factory or with remote PC Control (AMS1561-PCC3).

Applications

  • Background Music in restaurants, club, airpots
  • Live Music
  • Clubbing
  • Theatres

Frequency Response 45Hz – 18.5 kHz*
Frequency Response: Free Field 80 Hz**- 18 kHz ±3 dB
Sensitivity (1W/1m) 105 dB SPL
Maximum Peak SPL 136 dBspl
Transducers: Low/High Frequency 1×15″ LF driver, 1×6.5” MF driver and 1×1” HF. Rotatable Mid-Hi section
Dispersions (HxV) 60º x 35º. Rotatable mid-hi section allows swap of horizontal and vertical pattern
Power (AES) 730 W
Power (Peak) 1460 W
Rate Impedance 8 Ω
IN: 1xNL4 SpeakON® LINK: 1 x NL4 SpeakON® Input Connectors
NET Weight 51 kg (112,43 lbs)
Dimensions 926,5 x 524,8 x 570 mm (HxWxD) – (36.47” x 20.66” x 22.44”)
Processing DP2696/DP4896 or T-Series amplifier

Construction 16mm birch plywood. Finished in black semi-matt textured Polyurea weatherized coating.

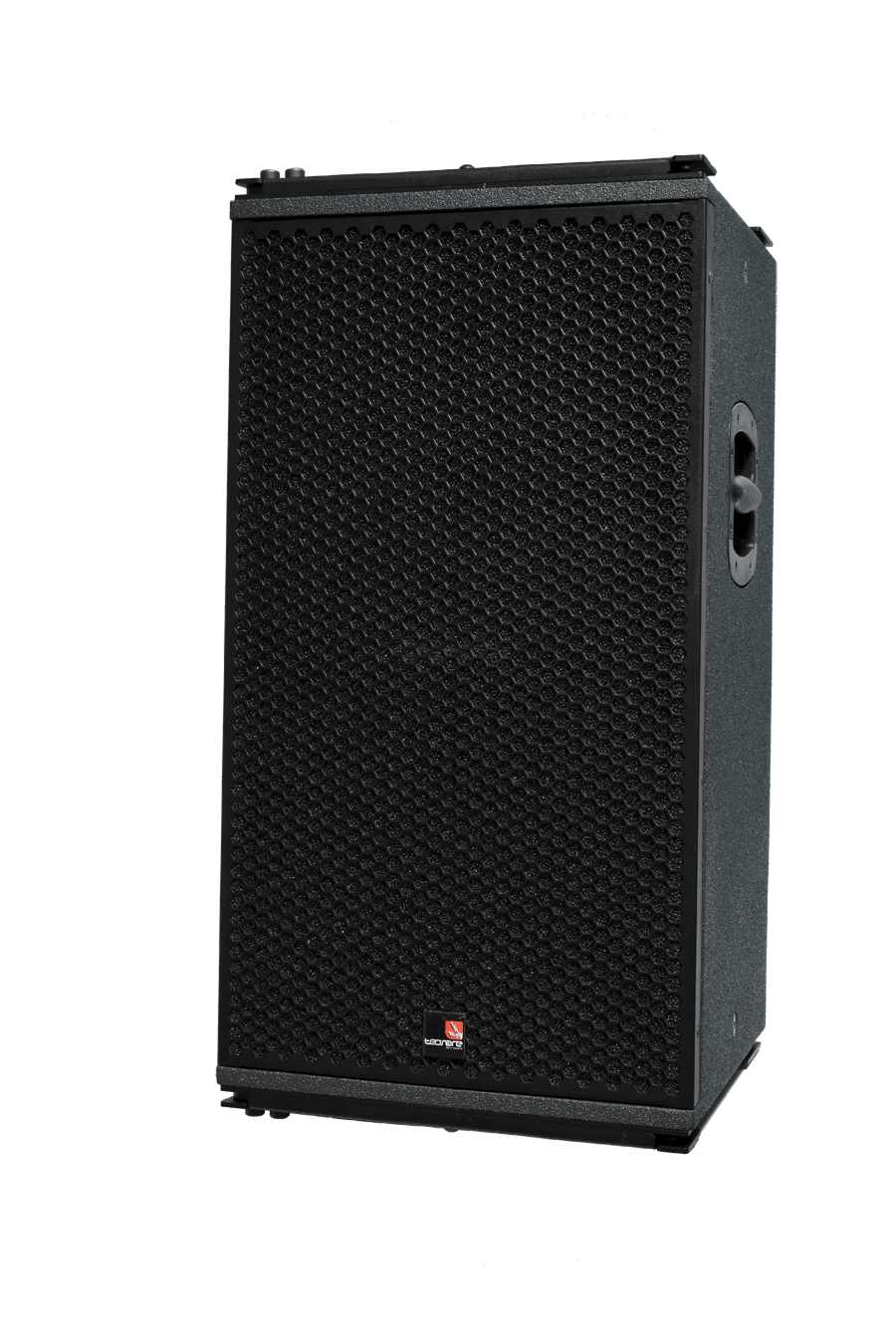

Protective Grille Powder coated perforated steel with acoustically transparent reticulated foam

Passive Crossover Network

  • ColourVersions:

-White color

-Black color

  • Self-Powered Verions

-A-Version

-PCC3 Version

R

Background Music

R

Live Music

R

Clubbing

R

Theatres
