AMS 12

FLEXIBLE MULTIPURPOSE LOUDSPEAKER
  • Arrayable Multipurpose Speaker
  • 1×12” LF driver, 1×1.4” HF driver on a rotatable Constant Q horn



z

710 W AES nominal/1.420 W continuous



132 dB continuous



g

8 Ohm



35 kg

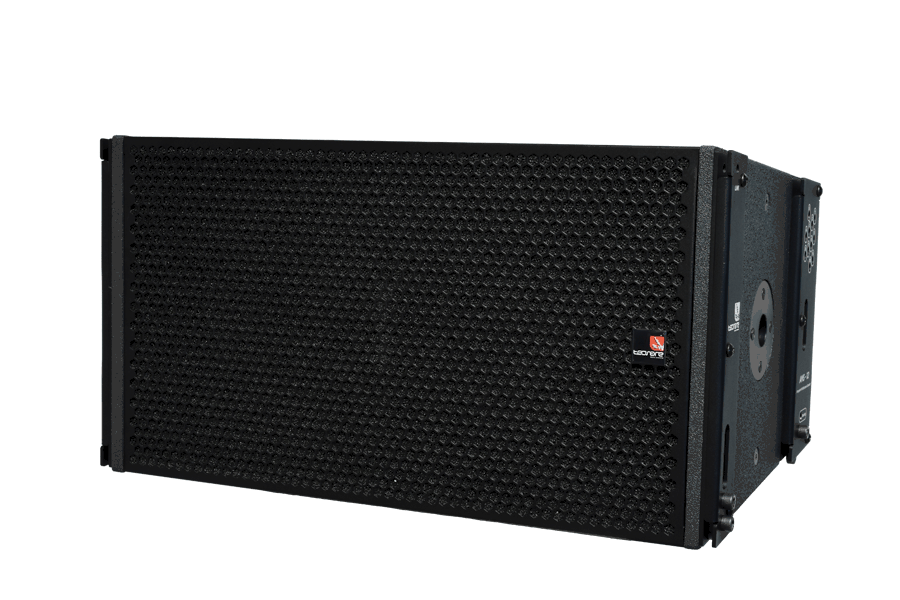

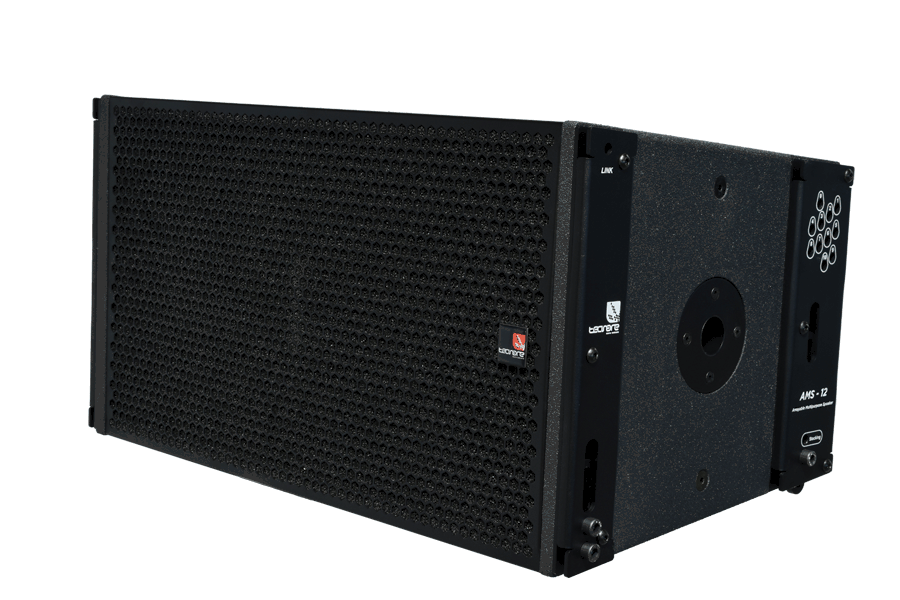

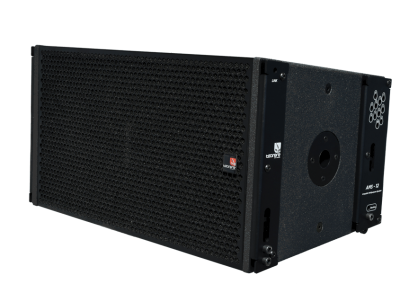

The AMS12 is a flexible multipurpose loudspeaker enclosure, designed for use in mobile or fixed sound reinforcement, either as a single full range PA or as an array element.

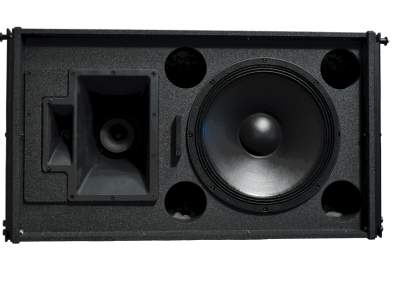

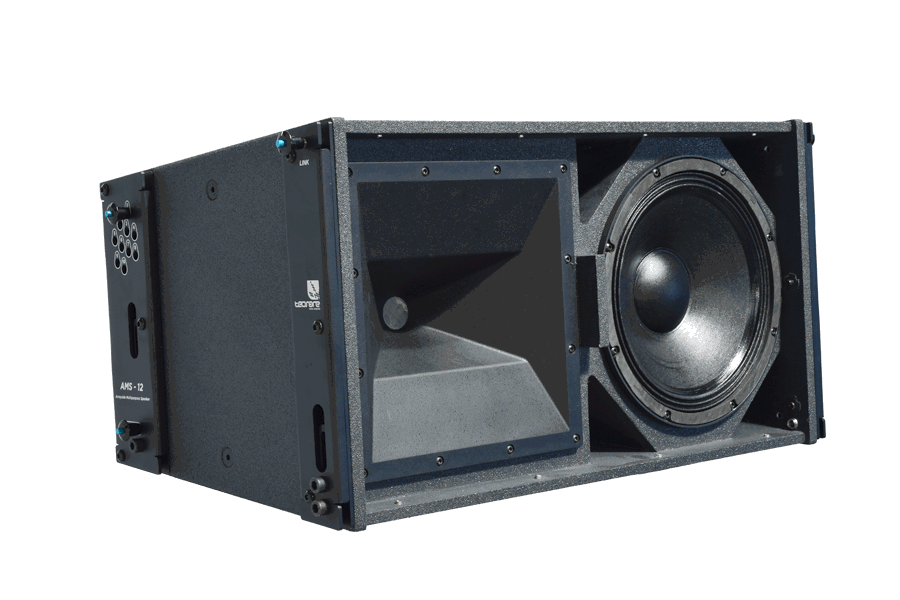

Arrays can be stacked horizontally or vertically. The design includes a powerful neodimium 3” voice coil 12” speaker CAD tuned into a vented box, and a 1.4” exit neodimium compression driver coupled to a rotatable wide bandwidth 90ºx30º high frequency horn. The system can be passive (AMS12), or selfpowered-A version with DSP fixed in factory or with remote PC control (AMS12 PCC-3).

Flying hardware provision, handles and a recessed floor stand socket are included as standard. The enclosure has been made with the latest techniques ensuring a perfect and rigid construction. Weatherized finish is provided, as the cabinet is coated with rugged Durawound texture finish and protected with specially treated grills.



Applications

  • Background Music in restaurants, club, airpots
  • Live Music
  • Clubbing
  • Theatres







Frequency Response 50 Hz – 18.5 kHz*
Frequency Response: Free Field 80 Hz**- 18 kHz ±3 dB
Sensitivity (1W/1m) 103 dB SPL
Maximum Peak SPL 132 dBspl
Transducers: Low/High Frequency 1×12″ LF cone driver and 1 x 3,5” voice coil HF driver on a rotatable CD horn.
Dispersions (HxV) 30º x 90º
Power (AES) 710 W
Power (Peak) 1420 W
Rate Impedance 8 Ω LF – 16 HF
IN: 1xNL4 SpeakON® LINK: 1 x NL4 SpeakON® Input Connectors
NET Weight 35 kg (77,16 lbs)
Dimensions 744 x 395 x 420 mm (HxWxD) – (29.3” x 15.55” x 16.53”)
Processing DP2696/DP4896 or T-Series amplifier

Construction 16mm birch plywood. Finished in black semi-matt textured Polyurea weatherized coating.
Protective Grille Powder coated perforated steel with acoustically transparent reticulated foam

Passive Crossover Network

  • ColourVersions:

-White color

-Black color

  • Self-Powered Verions

-A-Version

-PCC3 Version
