Discontinued Products
Find information about old & discontinued Tecnare products
L2122
The L2122LT is a 3 way (two active and one passive) mid-high cabinet.
The mid section consists of two extremelly powerful 12”, coupled to a long throw wooden non resonant horn. The high section consist of a 2”
compression driver and two 1”, filtered passively. These 3 compression
drivers are protected with an active PSS device that prevents failure situations. The 2” is coupled to a non resonant wooden-aluminium horn, while the 1” are attached to the throat of the 12” horns. The frequency response is very flat without any colouration. Ideally suited for large live and disco sound reinforcements, where very high pressure levels are required. It’s made of birch plywood and painted in a weather proof texture black finish. Can incorporate castors as an option.
L112
The L112 is a two way passive mid-high loudspeaker. It’s formed by a high
output 12”, coupled to an exponential horn, and a 2” compression driver
connected to a uniform 60ºx40º dispersion exponential horn. This
trapezoidal enclosure it’s designed for very high output requirements,
and a mid to long through application. The TS112 is madeof birch plywood
and painted in weatherproof texture black finish as standard.
K8
The K8 is a small trapezoidal two way loudspeaker, studio quality,
designed to be used in a wide variety of audio applications as a small
sound reinforcement unit. It houses a 8“ driver and a tweeter. The
construction is birch plywood and it’s painted in texture black finish.
K10
The K10 is a medium size trapezoidal loudspeaker that houses a long
excursion 10” and a high frequency 1 inch compression driver. It has a
really extended bass performance for such a small volume, with a well
balanced mid and high section. The cabinet is made of birch plywood,
painted in weatherproof texture black finish.
K12
K12 is a two way trapezoidal loudspeaker enclosure designed to be used where small size and high output performance are required. It’s a single
amp system, housed with a high power 12” and a 1” compression driver,
loaded into a 90ºx40º exponential horn. The 3” voice coil woofer is tuned
using CAD techniques. This full range passive system is particulary
suitable for short throw applications, as the 12” is direct radiating. The
K12 is made of birch plywood and coated in texture black finish. Flying
hardware is included as standard as well as a recessed floor stand
socket.
K15
K15 is a two way trapezoidal full range loudspeaker. Passively crossovered, this model is CAD tuned with a little ripple to enhace the bass response. The 3” voice coil 15” combines a very good low end performance with an excellent linearity up to 2.5 KHz, from which the 1” compression driver, coupled to a 90ºx40º exponential horn, responds with a extremely flat curve. The K15 delivers very high pressure level and it’s
well suited for short throw applications. The cabinet is CMC machined
and made of Baltic birch plywood, coated weatherproof in black texture
finish. Flying hardware and a recessed floor stand socket are included.
SW1818
The SW1818 is an extremelly powerful subwoofer system. It handles 1200 R.M.S. watts with a very high
sensitivity of 106 db (1watt / 1 meter). The system is fully horn loaded, equipped with two 18” drivers. It’s
particularly recommended for long throw applications in both live music and disco venues. The system is made
of birch plywood, painted with a weather proof texture black finish, and incorporates castors as standard.
L215
KSH115
The KSH115 is a high sensitivity bass cabinet, equipped with one 15”
driver, whose rear is coupled to a horn and front direct radiating. The result is a deep and fast response usable in long as well as short throw applications. The construction is birch plywood painted in texture black
finish.
KS210
The KS210 is a small band pass subwoofer, housed with two long
excursion 10” drivers. It has been designed to be used with K6 or similar
loudspeakers. As an option, it can incorporate a passive crossover,
allowing it to power one sub KS210 together with two K6’s with only one
stereo amplifier. The construction is birch plywood painted in texture
black finish.
TS1300
L218
TS700
LA102
The Tecnare La102 array is an extremely compact, lightweight enclosure housing one 10 inches speaker rear horn loaded, and one 1.5 inches compression driver attached to a waveguide device.
The system can be supplied in active Pc version or passive one. The active PC
version has an output connector to power one passive La102 box.
The first surprising characteristic when working with this LA 102 Array is the
extremely extended bass response coming out from such a small cabinet, well balanced with clean mids and highs.
TS151
TS121
TS121
PCC3 SERIES
LA122
A SERIES

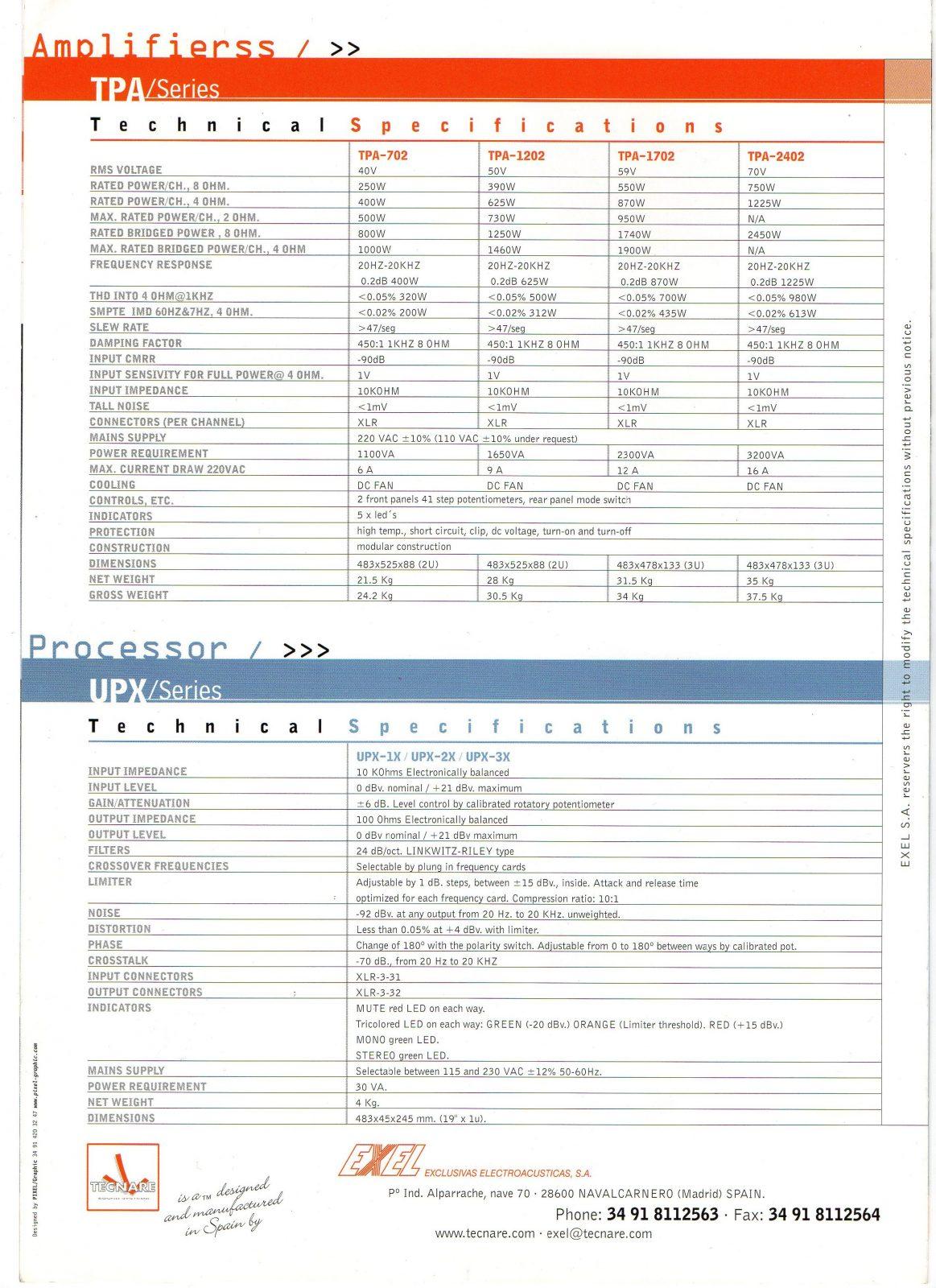

TPA SERIES
UPX SERIES
L1818
DP2696
ESW115
ESW118
P501
PA900
PA900 is a 2 channel Class H power amplifier that delivers up to 2x450W RMS @4Ω (900 W RMS bridged @8Ω), weighing just 12,7kg /27,99 lbs.
PA2100
PA2100 is a 2 channel Class H power amplifier that delivers up to 2×990 W RMS @4Ω (1980 W RMS bridged @8Ω) weighing 14,5kg /31,96 lbs.
PA3000
PA3000 is a 2 channel Class H power amplifier that delivers up to 2×1450 W RMS @4Ω (2900 W RMS bridged @8Ω), weighing just 19,5kg /42,99 lbs.
PA4.450
PA4.450 is a 4 channel Class H power amplifier that delivers up to 4×550 W RMS @4Ω (2×1000 W RMS bridged @8Ω), weighing just 8kg /17,63 lbs.
PA4.1500
PA4.1500 is a 4 channel Class H power amplifier that delivers up to 4×1670 W RMS @4Ω (2×4000 W RMS bridged @8Ω), weighing just 8kg /17,63 lbs.
PA5000
PA5000 is a 2 channel Class H High Power amplifier that delivers up to 2 x2600 W RMS @4Ω (2×5150 W RMS bridged @8Ω), weighing just 19,5kg /42,99 lbs.
TECNARE SOUND SYSTEMS
More than Old Loudspeakers
Tecnare is a brand that has gained a reputation for producing durable and reliable audio products. Many of their products have been in use for over 20 years, and despite being discontinued, they continue to operate without any issues.
One of the reasons for Tecnare’s products’ longevity is their focus on high-quality materials and construction. Their products are built to withstand heavy use and can withstand the rigors of frequent transportation and setup.
Moreover, Tecnare’s products undergo rigorous testing and quality control measures to ensure that they meet the highest standards of durability and performance. This attention to detail ensures that even after years of use, their products continue to function at their best.
As a result, many audio professionals and enthusiasts still use Tecnare’s older models, even though they have been replaced by newer models. This is a testament to the brand’s commitment to producing long-lasting and reliable products.
In conclusion, Tecnare’s dedication to quality and durability has resulted in many of their discontinued products still being in operation today. This is a testament to the brand’s commitment to producing high-quality products that stand the test of time.
DISCONTINUED PRODUCTS DATA SHEETS
OLDIES
