DP Series

DP Series Digital Signal Processors 1

The new Digital Loudspeakers Controllers of Tecnare Sound Systems are a high performance and user-friendly signal processors for loudspeaker system. The DP-Series supplies generous amounts of signal processing capability and a wide variety of crossover shapes. The Hardman high-pass and low-pass filter are particularly avantgarde and enable the use to do very selective cuts (with high slopes) without introducing phase rotation, thus allowing the design of very accurate crossovers.

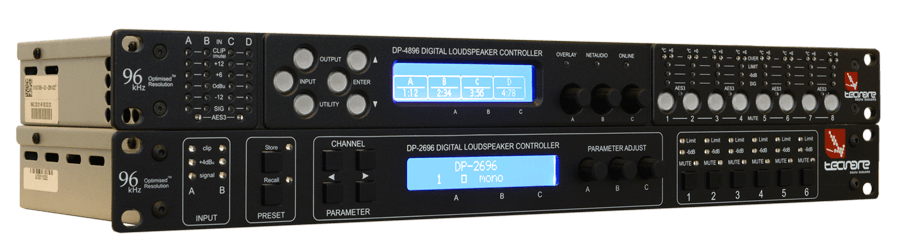

DP4896

Digital loudspeaker Controller

The DP-4896 Digital Loudspeaker Controller takes audio performance to the next level with new audio converters and advanced DSP algorithms that make full use of the processing power offered by the latest 4th generation SHARC DSPs.

Overview

The DP–4896 Digital loudspeaker Controller is a one rack spacer, 4 input/8 output and digital matrix, high performance signal processor for loudspeaker systems

Two-pair of balanced XLR connector feeding state-of-the-art A/D converters operating at 24-bit resolution, 96 kHz sample rate provides for nominally flat response beyond 40 kHz.

One or more input pair can be switched to operate as standard stereo AES3, with the option of a Dante® audio networking card. 8 outputs can be switched to operate as analog output or as AES3 (two channel per output: 1-2, 3-4, 5-6, 7-8) output.

Three velocity-sensitive rotary encoder, illuminated buttons and graphical display provide a rapid and intuitive control from its front panel.

The Device includes a comprehensive arsenal of powerful signal processing tools. Input processing function offers: gain, high-pass filter, high and low shelving, 6-band parametric EQ, delay and polarity. Output processing function offers: gain, crossover, high and low shelving, 8-band parametric EQ, polarity, delay, and innovate suite which includes VX limiter providing dynamic control for passive 2-way enclosures, an Xmax excursion limiter with sliding High pass filter and Tmax transducer thermal modelling.

The accompanying Podware software is easily installed and intuitive to use provides comprehensive control of all parameters from Windows® based computer via Ethernet protocol.

A large library of preset is included for systems ranging from small Tecnare loudspeaker all the way up to complex Array Series line array products.

Features

Features
High quality 24-bits / 96 kHz 3th generation SHARC DSP
Two input & six output analog channels
Hardman Filters
Delay 400ms on input, 80 ms on outputs
Accepts 48kHz and 96kHz FIR files via System Engineer (DP4896F)
Manufactured in UK
Applications
Medium and large size PA systems
Disco, club and DJ sound
TECNARE systems
Public Spaces
Mobile and fixed installation
Signal routing and zoning

Specifications

Number of Channels 4 Analog or AES3 Input / 8 Analog or AES3 output. DANTE option Card Available
Max input level +20dBu
Max Output level +18dBu into 600R
Sample Rate / Bit Depth 96kHz / 24-bits
Frequency Response / Dynamic Range 10 Hz-40 kHz, +/-3 dB / Input Dyn range: >120dBa Typ.; Out Dyn range: >118dBa Typ.
THD (20Hz–20kHz):                                           <0.008% Typ
Audio Processing
Input Gain  -80 to +20dB
Delay Input Delay: 1s / Output Delay: 1s
HPF/LPF types Bessel, Butterworth, Linkwitz Riley, Hardman, LIR, FIR
Power Supply
Mains power Universal switch-mode PSU, 85v to 250v AC, 50/60 Hz
Consumption 30 Watts
Physical
Connectors Input:                                             Female XLR-3 / Output: Male XLR-3
Comunications ports Shielded Rj45, 3-pin Phoenix aux contact
Enclosure  Standard 19” 1U (44mm, 1.7″), 254mm (10”)
Net Weight 2.7 kg (6 pounds)

Options

Optional DANTE™ CARD (Only fixed in factory)

Download

Data Sheet DP4896
