AMS 15

FLEXIBLE MULTIPURPOSE LOUDSPEAKER



  • Arrayable Multipurpose Speaker
  •  1×15” LF driver, 1×1.4” HF driver on a rotatable CD horn.





z

710 W AES nominal / 1.420 W continuous.



129 dB continuous /135 peak



g

8 Ohm



51 kg

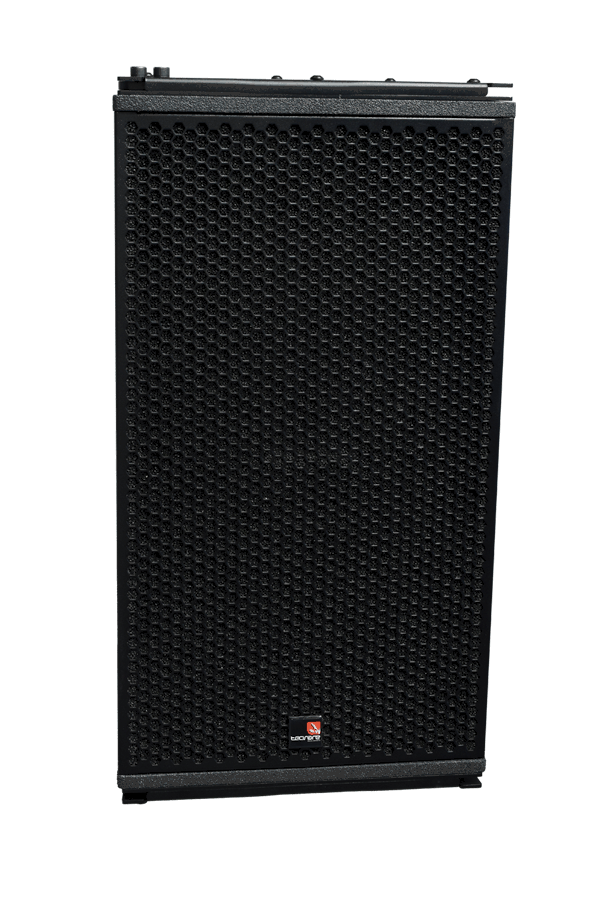

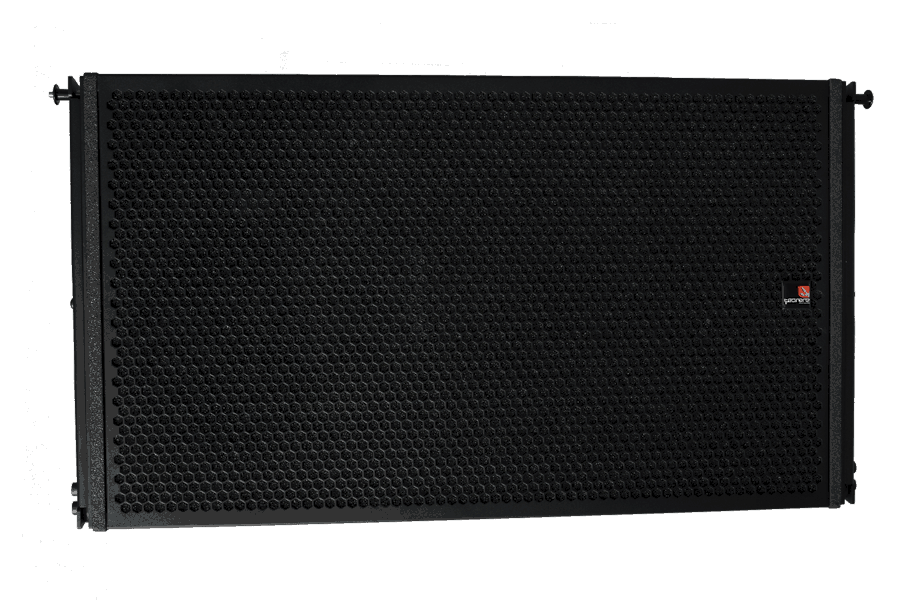

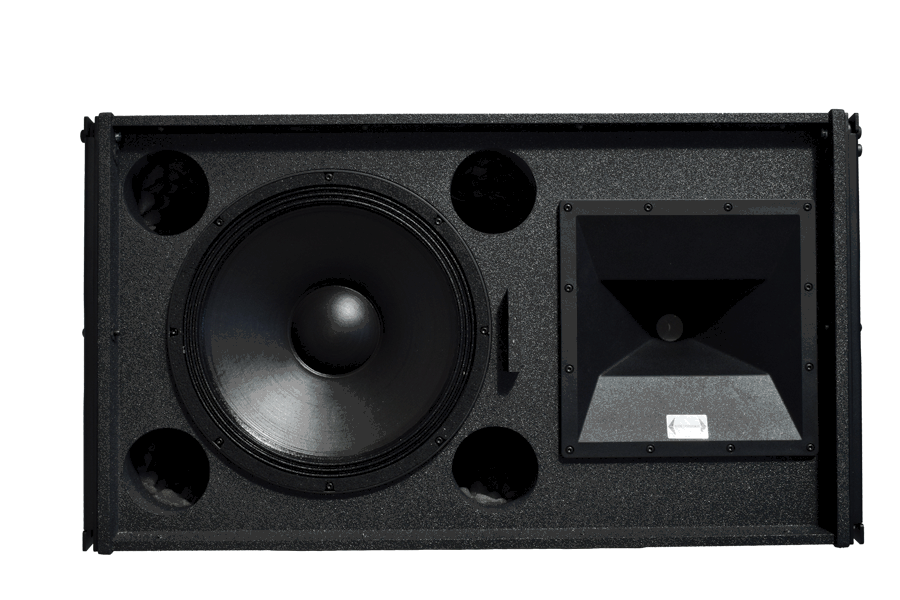

The AMS15 is a flexible multipurpose loudspeaker enclosure, designed for use in mobile or fixed sound reinforcement, either as a single full range PA or as an array element. Arrays can be stacked horizontally or vertically. The design includes a powerful neodimium 3” voice coil 15” speaker front horn loaded CAD tuned box, and a 1.4” exit neodimium compression driver coupled to a rotatable wide bandwidth 90ºx40º high frequency horn. The system can be passive (AMS15), or selfpowered with remote PC control (AMS15 PCC).

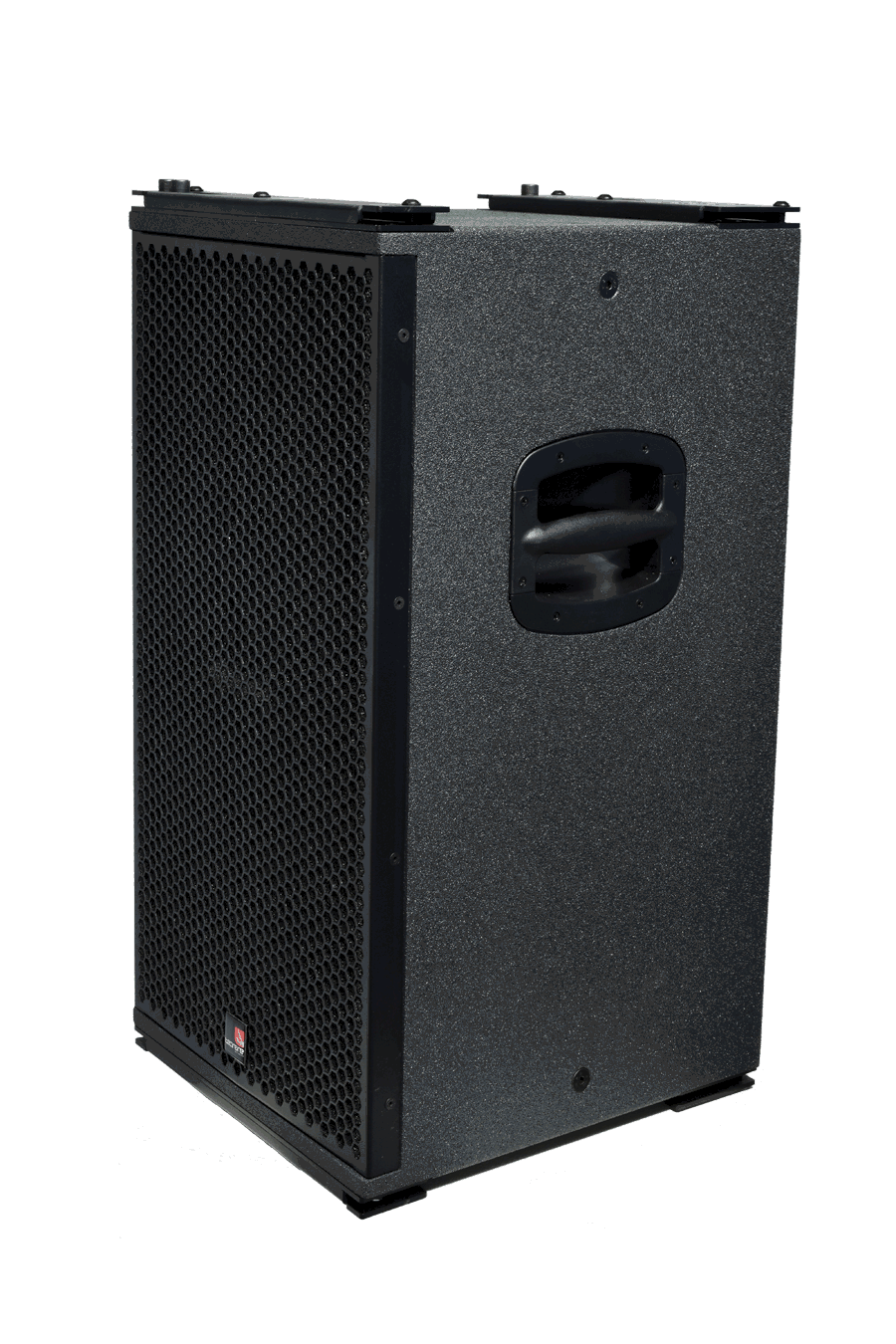

Flying hardware provision, handles and a recessed floor stand socket are included as standard. The enclosure has been made with the latest techniques ensuring a perfect and rigid construction. Weatherized finish is provided, as the cabinet is coated with rugged Durawound texture finish and protected with specially treated grills.

Applications

  • Background Music in restaurants, club, airpots
  • Live Music
  • Clubbing
  • Theatres







Frequency Response 45Hz- 18.5 kHz*
Frequency Response: Free Field 80 Hz**- 18 kHz ±3 dB
Sensitivity (1W/1m) 104 dB SPL
Maximum Peak SPL 135 dBspl
Transducers: Low/High Frequency 1×15″ LF cone driver and 1 x 3,5” voice coil HF driver on a rotatable CD horn.
Dispersions (HxV) 30º x 90º
Power (AES) 710 W
Power (Peak) 1420 W
Rate Impedance 8 Ω (bi-ampLF) – 16 Ω (bi-amp HF) / 8 Ω (passive)

IN: 1xNL4 SpeakON® LINK: 1 x NL4 SpeakON® Input Connectors
NET Weight 51 kg (112,43 lbs)
Dimensions 926,5 x 524,8 x 570 mm (HxWxD) – (36.47” x 20.66” x 22.44”)
Processing DP2696/DP4896 or T-Series Amplifier

Construction 16mm birch plywood. Finished in black semi-matt textured Polyurea weatherized coating.
Protective Grille Powder coated perforated steel with acoustically transparent reticulated foam



 Passive Crossover Network

  • ColourVersions:

-White color

-Black color

  • Self-Powered Verions

-A-Version

-PCC3 Version

R

Background Music

R

Live Music

R

Clubbing

R

Theatres
