V Series Accessories

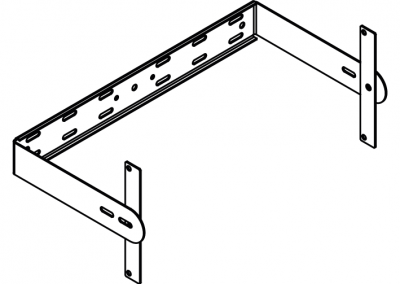

TUB-V12 U-Bracket 1

TUB-V12

TUB-V12 U-Brackets secure and safely aim V12 loudspeakers in horizontal or vertical from structural surfaces including: walls, ceilings, under balconies and overhangs. Loudspeakers rotate within the arms of the bracket to provide one axis of rotation.

Flexible features allow these mounts to be installed anywhere, under trussing with a half coupler, atop tripod stands or suspended from overhead with pipe or threaded rod.

Steel, painted black or RAL colour under request.

Dimensions

U-Bracket: (674 x 88,8 x 365) mm; (26.53 x 3.49 x 14.37) in

Adapter Plate: (274,3 x 3 x 40) mm; (10.8 x 0.12 x 1.57) in

Weight

2,5 kg (5.5 lb)

Downloads: TUB-V12

TUB-V2 Installation

TUB-V12 PDF Drawings

19 Dec., 2017  Rev. 2


TUB-V12 Product information

01 Sept. 2019. Rev 2.0
