Cla21 Plus

The Tecnare CLa21Plus is the first of a new family of line source modules which incorporates a new unique technology that seamlessly integrates MF and HF components into a single horn which produces a coherent wavefront without interruptions.

z

1000 W LF / 180 W MF-HF AES / 2000 W LF / 360 W MF-HF

141 dBspl continuous / 147 dBspl peak

g

8 Ω LF - 16 Ω MF/HF

39,5 kg (87.08 lbs)

MAKE IT PLUS

Plus Power, Plus Intelligibility, Plus Coverage

CLA21PLUS 2

More Power

Power (AES): 1000 W LF / 180 W MF-HF

Power (Cont): 2000 W LF / 360 W MF-HF

141 dBspl continuous / 147 dBspl peak

CLA21PLUS 3

More Coverage

75° x 13º (Only one box. Vertical varies with array lenght and configuration)

CLA21PLUS 4

More Intelligibility

2 x 10″ LF cone drivers + 1 x 1.4” exit, coax 4” VC MF & 2.5 mm VC HF driver on waveguide device.

CLA21PLUS 5

NEW 3 WAY TECHNOLOGY

*new coaxial 4-in voice coil

*2.5-in voice coil high-frequency driver

CLA21PLUS 6
CLA21PLUS 7

Multifunctional Compact Line Array

A NEW PARADIGM IN LINE ARRAY SYSTEMS

At the heart of the CLa21Plus line source module is a new coaxial 4-in voice coil mid-frequency and 2.5-in voice coil high-frequency driver, and covering the 400Hz to 20kHz range. It is loaded to a waveguide and a proprietary horn that ensures low distortion and controlled broadband directivity.

With extended frequency response down to 55 Hz, the CLa21Plus LF section houses two 10-in dipolar mounted, high-excursion drive units, 3-in voice coils to maintain long throw projection of low frequencies.

8Ω LF and16Ω MF/HF Nominal Impedance

Compact three-way, bi-amp cabinet

2 x 10”LF lightweight neodymium motors

Easy propietary rigging systems

Theaters, Arenas, Stadiums

Dance clubs

Medium size festivals

Coorporative events and churches

Specifications

  The Tecnare Cla21Plus is the first of a new family of line source modules which incorporates a new unique technology that seamlessly integrates MF and HF components into a single horn which produces a coherent wavefront without interruptions.
  At the heart of the Cla21Plus line source module is a new coaxial 4-in voice coil mid-frequency and 2.5-in voice coil high-frequency driver, and covering the 400Hz to 20kHz range. It is loaded to a waveguide and a proprietary horn that ensures low distortion and controlled broadband directivity.
  With extended frequency response down to 55 Hz, the Cla21Plus LF section houses two 10-in dipolar mounted, high-excursion drive units, 3-in voice coils to maintain long throw projection of low frequencies.

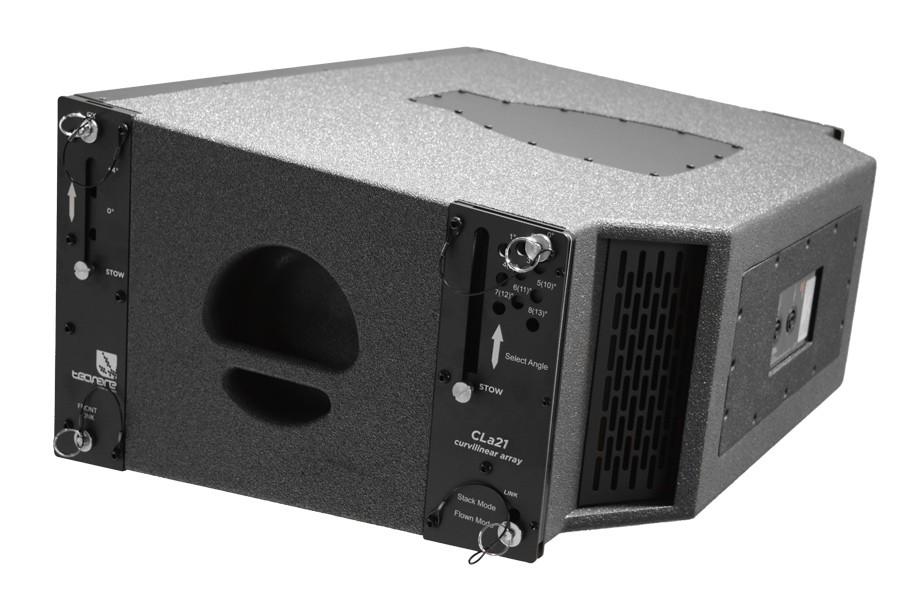

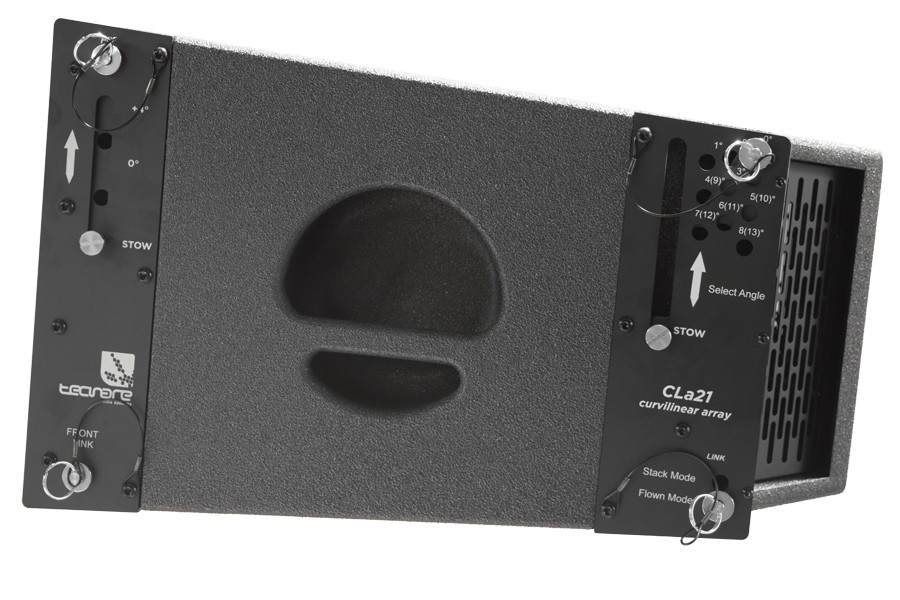

  The cabinet construction has been made using premium Baltic birch and tour-ready, weather-resistant polyurea coating offering excellent protection and durability. The intuitive property four-point rigging system enhances ease-of-uses which allows angle selection to be made while boxes are stacked on the transport dolly.
  The Cla21Plus provides a superior performance to live & installed sound market at an affordable and very easy-to-work with package

 Features

  • Compact three-way, bi-amp cabinet
  • 2 x 10”LF lightweight neodymium motors
  • 1 x 1.4” coaxial mid-high compression Driver
  • Easy propietary rigging systems
  • 8Ω LF and16Ω MF/HF Nominal Impedance

Applications

  • Theaters, arenas, Stadiums
  • Dance clubs
  • Medium size festivals
  • Coorporative events and churches
  • Fill and integration with Cla208



Frequency Response55 Hz – 20 kHz*
Frequency Response: Free Field60 Hz/80** – 18 kHz ±3 dB
Sensitivity (1W/1m)110 dBspl
Calculated SPL141 dBspl continuous / 147 dBspl peak
Transducers: Low/High Frequency2 x 10″ LF cone drivers + 1 x 1.4” exit, coax 4” VC MF & 2.5 mm VC HF driver on waveguide device.
Dispersions (HxV)75° x 13º (Only one box. Vertical varies with array lenght and configuration)
Recommended AmplifiersPA3000/PA5000/T20-44/T10-44/T20-48/T10-48
Power (AES)***1000 W LF / 180 W MF-HF
Power (Cont)2000 W LF / 360 W MF-HF
Rate Impedance8 Ω LF – 16 Ω MF/HF

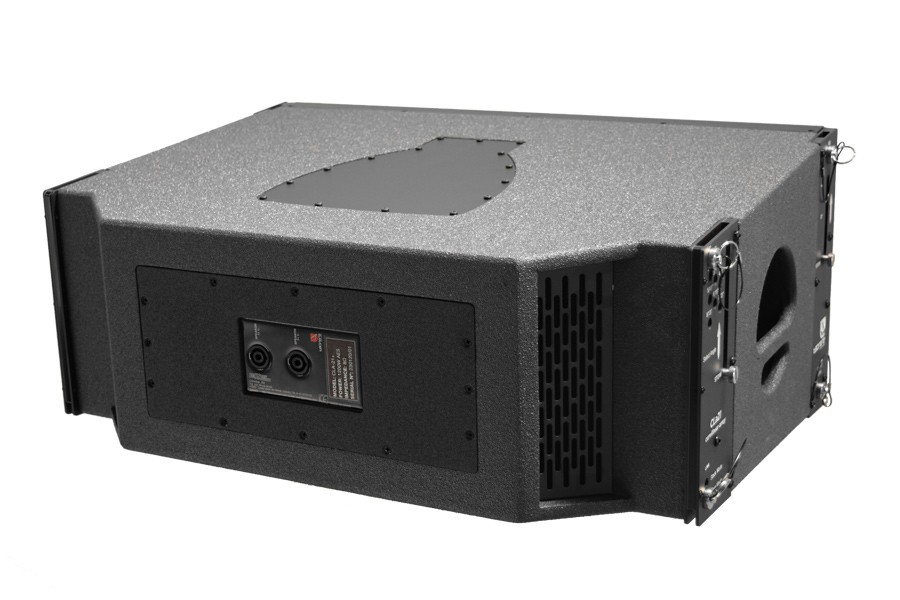

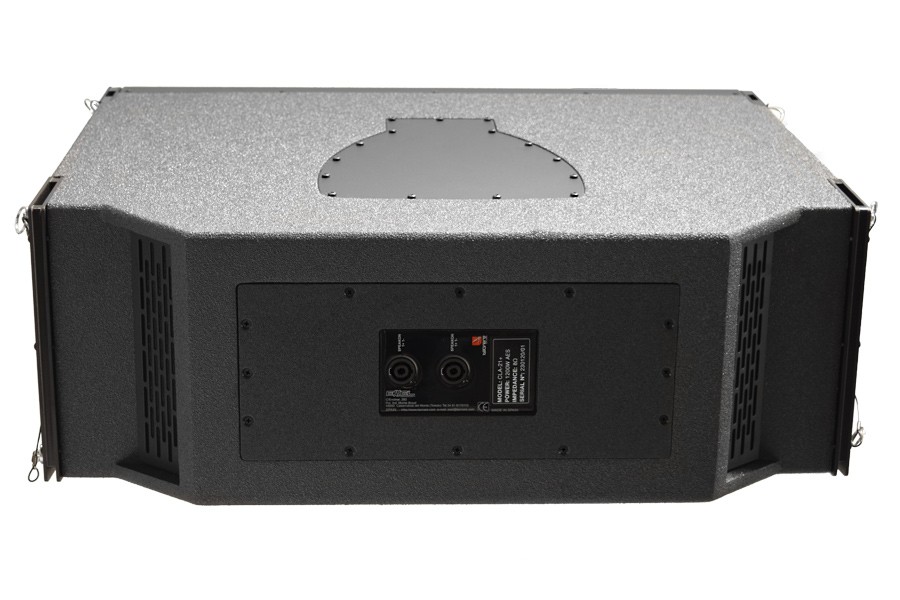

Input ConnectorsIN: 1xNL4 SpeakON® LINK: 1 x NL4 SpeakON®
NET Weight39,5 kg (87.08 lbs)
Dimensions767 x 580 x 320mm (30.2” x 22.84” x 12.60”)(WxDxH)
Construction16mm birch plywood. Finished in black semi-matt textured Polyurea weatherized coating.
Protective GrillePowder coated perforated steel with acoustically transparent reticulated foam

*Recommended maximum operating frequency range. Response depends on loading conditions and room acoustics.

**Standard/CUT mode

***Based on a 2 hours test applying 6dB crest factor pink noise signal within the range Fs-10Fs (AES2-1984).

Accessories

  • Multipurpose Top Grid: THV-21/18V
  • CLa21 AngExt Angle extension Arm for THV-21/18VR
  • PB-CLa21 PullBack
  • Wooden dolly CLa21: TWD-21
  • FUND-3 CLa21 – Three-high CLa21 Transit Cover: Covers three stacked
  • FUND-4 CLa21 – Four-high CLa21 Transit Cover: Covers four stacked
  • FC-CLa21 – Flight-case for CLa21: Road-ready Flight Case for 4 x CLa21

Available Versions

  • CLa21P – driven through passive crossover network
  • CLa-21A Self-Powered version with DSP Fixed on factory
  • CLa-21 PCC-3 Self-Powered version with Network controlled DSP

Colour Options

  • White colour
  • Black colour
  • RAL colour



Cla21 Plus Data Sheet

Download the Cla21 Plus Data Sheet by clicking on the button below.

CLA21PLUS 8

Download Data Sheet
