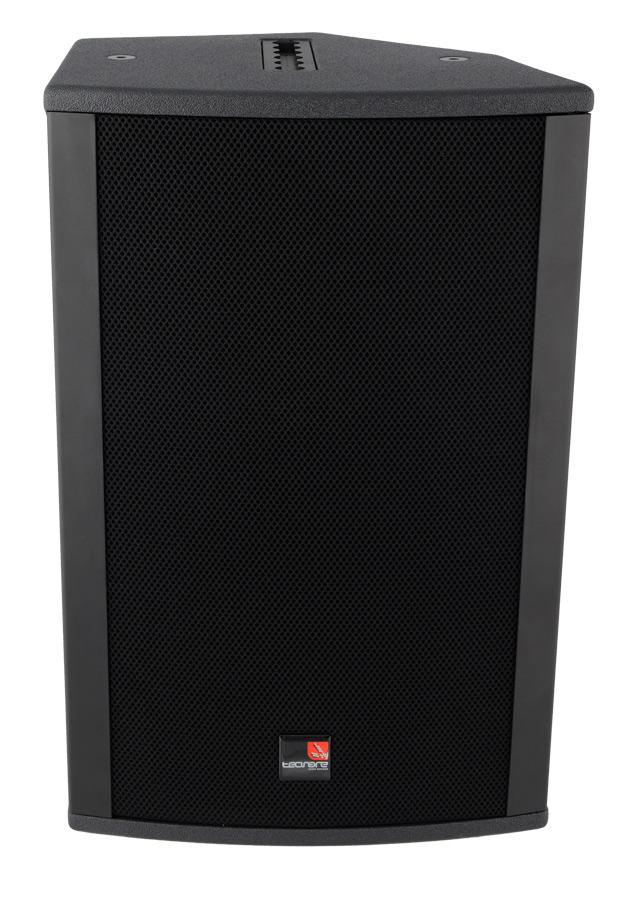

FULL-RANGE COMPACT VERSATILE LOUDSPEAKER

V10

2-Way Passive Loudspeaker

1 x 10-inch LF cone, Vented box

1 x 1-inch compression driver on a rotatable exponential CD Horn

V10 1

Power

350 W AES. 700 W continuous

Impedance

8 Ohm

SPL

123 dB continuous/ 129 Peak

Weight

14,4 Kg

The V10 is a lightweight, flexible and multipurpose loudspeaker enclosure, designed for use in mobile or fixed sound reinforcement either as a main PA or as a stage monitor. The design includes a powerful 10-inch (3-inch voice coil) cone transducer tuned into a vented box, and a 1-inch exit/1.75-inch HF compression driver coupled to a rotatable coverage pattern 90ºx60º CD horn to provide a smooth and clear high frequency reproduction. The system include an internal passive filter/crossover network.

Flying hardware provision, handles and a recessed floor stand socket are included as standard. The enclosure has been made with the latest techniques ensuring a perfect and rigid construction. Weatherized finish is provided, as the cabinet is coated with rugged Durawound texture finish and protected with specially treated grills.

Features

  • Two-way full range loudspeaker
  • 1 x 10-inch LF cone / 1 x 1-inch exit, 1.75-inch voice coil compression driver
  • Rotatable horn for optimized pattern control

Applications

  • Highly intelligible vocal reproduction
  • Stand alone system
  • Dual use main/monitor two-way system
  • Corporate events
Frequency Response:  52 Hz – 20 kHz ±4dB, measured on axys
Components:    1×10” LF driver, 1×1” HF driver on a rotatable exponential horn
Nominal Dispersion: 90°H x 60°V@-6db points. Rotatable horn allows swap of horizontal and vertical pattern
Impedance: 8 Ohm
Axial Sensitivity:  97 dB (1w/1m)
Calculated SPL: 123 dB continuous/ 129 Peak
Power Handling: 350 W AES. 700 W continuous
Dimensions (HxWxD) (millimeters/inches): 525x340x290 mm / 20.67″ x 13.38″ x 11.42″
Net Weight (kg/Pounds): 14,4 Kg / 31.75 lbs
Construction: 16mm birch plywood. Finished in black semi-matt textured Durawound weatherized coating. One recessed carrying handle
Grille:  Powder coated perforated steel with acoustically transparent reticulated foam
  • Accesories:

    -Color Versions:

    • White color
    • Black color

    – TUB-V10 U-Bracket

Highly intelligible vocal reproduction

Stand alone system

Dual use main/monitor two-way system

Corporate events





























ROTATABLE HORN

V10 2

STAGE MONITOR & FRONT OF HOUSE CONFIGURATION

Front of House Configuration:

Good coverage of audiences often requires a conflicting combination of wide coverage (“short-throw”) for the closest listeners (below cabinet axis) and narrow coverage (“long-throw”) for distant areas (on or above axis). The V12 and V15 loudspeaker horizontal horn coverage varies from “shortthrow” to “long-throw” along the vertical axis to precisely match these practical requirements in a single system. For the majority of applications, the asymmetrical horn should be used with its “wide” dispersion side directed towards the floor, but all four cabinet orientations are usable.

V10 3

Stage Monitor Configuration:

  For stage monitors the required coverage is always wider when performers are close to the wedge (above the horn axis) than when they move away from it (below the horn axis). For floor monitor use the horn must be rotated with its “wide” d
ispersion side directed towards the top of the cabinet in wedge position as shown in the below figure.
The specific dispersion pattern, the HF driver and the very high power handling all contribute to the exceptional performance of the V Series as a wedge monitor.

V10 4

V10 Accessories

V10 5
TUB-V10 U-Bracket

U-Bracket for V10 Loudspeaker + LPV10 adapter plate

V10 6
TSC-350
Wall Mount for speaker with
35mm flange mounting and
tube with ø35mm

Related Products

V10



V12



V15



V10



V14CX



V15
