4 Channel Multi-Purpose Amplifier

XiT4

4 channels

4 x 450W @ 8 Ω

4 x 800W @ 4 Ω

4 x 1250W @ 2 Ω

2500W @ 4 Ω per bridged pair

XiT4 1

Power

5.000 Watts RMS – all ch. driven

Channels

4 Channels

Network

Analoge, AES3, Dante™/ AES67

Weight

9,5kg

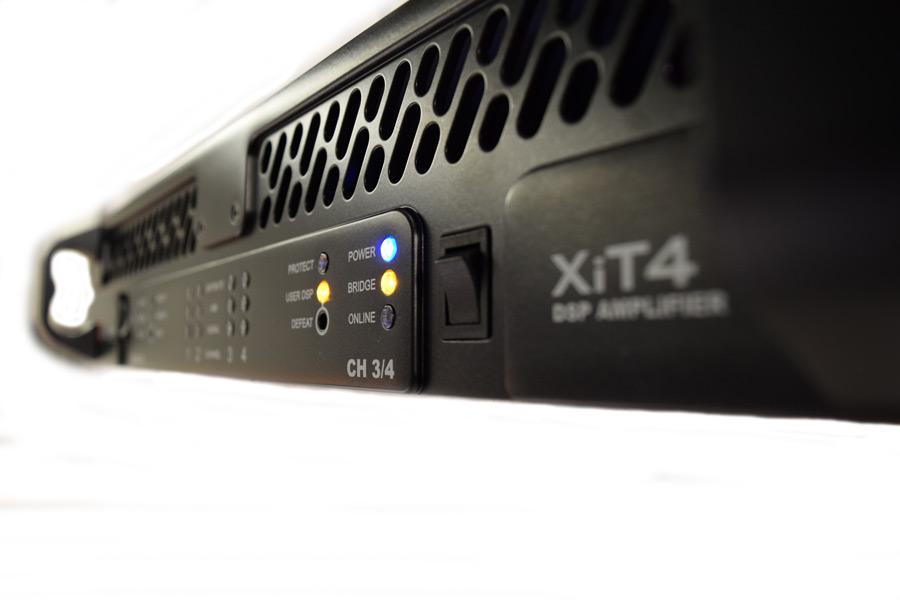

The XiT4 is a four channel amplifiers optimised for lower demanding pro audio applications. Offering a unique combination of power output, audio performance and combined with advanced 96kHz DSP and network control.

Sharing the same form factor as Tecnare’s T44&48 Series amplifiers, each of the XiT4 four channels can deliver 1250 Watts RMS in to 2 ohms continuously, or up to 2500 Watts in to 4 ohms for a bridged pair of channels. These are not burst or peak power figures, they are the power levels that are delivered by all channels simultaneously.

With the X Series amplifier there is no need to ratio power between channels, you can use all the power in any format as you please, even when the driven with the same dense program material.

Remote control operation is via the PC application ‘System Engineer’. The system engineer application provides convenience and time saving features such as very flexible management of presets, Overlay grouping of Mutes, Gains, Delays and EQ across an entire system. BvNet is a RS485 based system that allows many XiT4 amplifiers to be ‘daisy chained’ over hundreds of metres, using low cost Rj45 cables without the need for a network switch. You can also connect via USB.

The XiT4 also provides extensive fault and status logging including driver integrity monitoring. These facilities are usually only associated with very expensive specialised products and this is the first time that they have been made available as standard features for no additional cost.

Features

  • 4 sonically pure class D channels
  • Unique, precise 96kHz digital signal processing
  • Dual 85V to 240V Auto-sensing PSU
  • 5.000W RMS total output
  • Tamper-proof front panel
  • USB & BvNet (optimised RS485) network for operation and monitoring
  • Contact closure voice pre-set selection and shutdown
  • 2 Ohm and 70V / 100V Line Capability
  • Manufactured entirely in the UK

Applications

  • Medium and large size PA systems
  • Disco, club and DJ sound
  • TECNARE systems
  • Public Spaces
  • Mobile and fixed installation
General Specifications
Number of channels    Four
Total Power output, all channels driven 5.000 Watts RMS
Audio inputs 4 x Analogue
Digital Signal Processing   High performance 96kHz DSP processing on all inputs and outputs
Control, monitoring and system status alarms  USB & BvNet (optimised RS485) Contact closure port for voice recall and system shutdown
Power-save mode  Standby after user defined time with fast wake-up on audio. Deep ECO sleep after user defined time, wake up on command
System sleep and wakeup  Front panel switch, network command and audio detection





   Per Channel      Bridged Pair
2 Ohm    1.250W
4 Ohm    800W 2500W
8 Ohm 450W 1.600W



Audio Performance
Amplifier topology  Proprietary Class D
Amplifier modulation scheme Low feedback, multiple loop, with    feed-forward error correction
Frequency response4 Ω load 20Hz to 20kHz, +/- 0.5dB
Total harmonic distortion, THD  ‹0.05% typical, 1kHz signal, AES17 filter, 4Ω load
Inter-channel crosstalk worst case combination Better than -80dBr at 1kHz
Maximum analoge input level +20dBu
Analogue input sensitivity range for full output 0dBu to +20dBu, continuously            adjustable
Analogue input and link (four channels) Input 10kΩ, electronically                balanced, link directly connected                  to analogue input
Analogue ground scheme AES48 standard compliant
Gain (with all the DSP level control set to 0dB) 27dB
Slew rate   >25V per microsecond typical
Damping factor (Ref 8 Ohm)  >100 at amplifier output



Power Output
Power Specification RMS output power per channel, all channels driven with continuous        program material and nominal ambient                    temperature of 40degC/ 105degF
Crest Factor of 4 (12dB), 2Ω nominal load  1.250 W per channel
Crest Factor of 2.8 (9dB), 4Ω nominal load 800 W per channel 2.500 W per bridge pair
Crest Factor of 2 (6dB), 8Ω nominal load 450 W per channel 1.600 W per bridge pair
25V line (CV) operation, Crest Factor 4(12dB)  625 W per channel
70V / 100V line operation, Crest Factor 4 (12dB) 1.250 W per channel – can drive 70V/100V line to -2dB/-5dB max. 2.500 W per bridge pair



Digital Signal Processing
Resolution    40 bit, proprietary algorithms
Sample rate    96kHz throughout
Input processing, per channel Input signal routing, delay, gain, Polarity, Mute
EQ: 4th order HPF, 4th order LPF, 8 x Parametric, Low          and High shelving filters
Output processing, per channel Source, delay, gain, polarity, Mute, up to 8th order                  crossover filters, intelligent limiters EQ: 6xPEQ/ Low              and high shelving filters
Crossover filter types  Bessel, Butterworth,Linkwitz-Riley, Hardman
Pre-set management  4 voice pre-sets per channel pair, selected by                          contact closure.



Physical
Cooling   Dual vari-speed fans, front to back airflow. Washable, tool less change filter media.

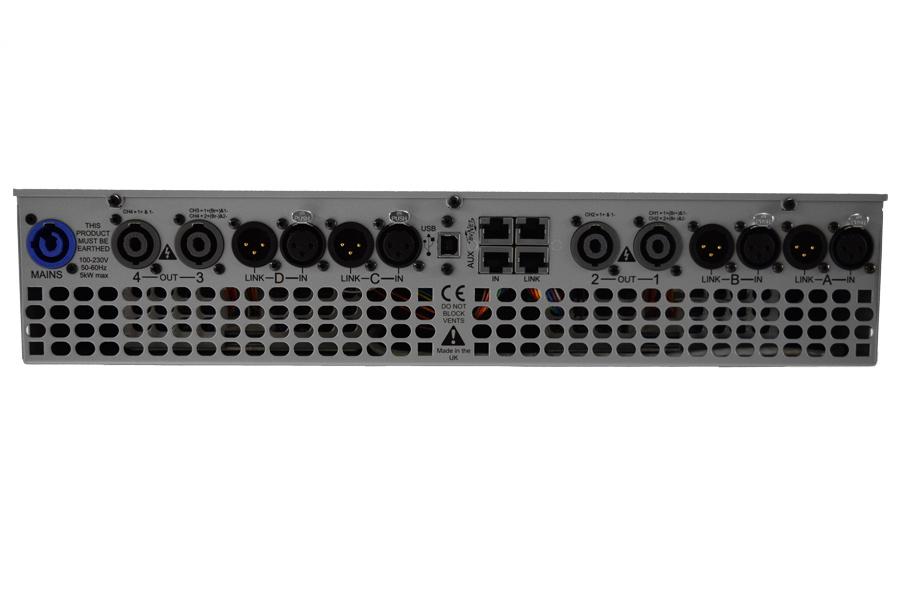

Analogue IN and LINK  4x female and 4x male Neutrik™ XLR
AES3 dual channel IN and LINK  1x female and 1x male Neutrik™ XLR
Amplifiers output 4x Neutrik SpeakON™ NL4 connectors
Main input connector Neutrik 20A PowercON™
USB
Standard USB type ‘B’
Network (BvNet)  RJ45 in with RJ45 daisy-chain link
Contact closure and shutdown inputs RJ45 in with RJ45 daisy-chain link
LED indicators Bright, easily differentiated
Enclosure
Standard 19” 2U (88×357)mm (14”deep) with handles and optional rear support
Optional accesories    Rear rack support kit (TS-TRSK)
Net Weight  9,5kg (20 lbs)

Medium and large size PA systems

Disco, club and DJ sound

Public Spaces

Mobile and fixed installation

T Series Accessories

XiT4 2
TSK-TS

Rear rack support kit (2 x L-bracket, 2x adapter plate and mounting hardware).

Compatible with all T-Series amplifiers and Xit4 amplifiers.

XiT4 3
TPB2U-OUT

19”/2HU connection panel front-mounted for the connection of up to three
T-Series Amplifier with 2 Analog In/link
port, one AES3 In/Link port, 1 x Ethernet port, 12 x SpeakOn®NL4 amp outputs and 3 x SpeakOn®NL8 Multi-Out

XiT4 4
TPB1U

The TPB1U connector panel is a pro-grade audio panel used as a solution for the wiring of ampracks, which should head for loudspeakers by a both, four pin and / or eight pin SpeakON cabling.

Output port include 4 SpeakON NL4 and 1 SpeakON NL8, 4 XLR3 analogue inputs and 2 XLR3 analogue link ports. In addition, the system offers 1 AES3 input (1/2) and 1 AES3 link port (1/2)

Network communication is supported through 1 RJ45 port.

The panel is completed with a front-side 32A PowerCON32 connector to bring AC power to the amplifier,

XiT4 5
T-SRack3 STD

3HU Quick shut Touring rack assembly,
1 x T-Rack3U -STD, equipped with 1 x
TPB1U Patchbay

XiT4 6
T-SRack6

6HU Quick shut Touring rack assembly,
1 x T-Rack6U, equipped with 1 x
TPB2U Patchbay, 1 x TPD32 (rear
mounted), 2 x Cat6cable, signal wiring
for 2 x T-Series amplifier, 2 x 0,5m
Power cable assembled with 2 x
PowerCON®32, 1 x TP-Link®
Switch 8-Port

XiT4 7
T-SRack10

10HU Quick shut Touring rack assem
bly, equipped with 1 x TPB2U Out
Patchbay, 1 x TPB1U-IN Input Patch-bay, 1 x TPD32, 3 x Cat6cable, signal
wiring for 3 x T-Series amplifier, 3 x
0,5m Power cable assembled with 2 x
PowerCON®32, 1 x TP-Link® Switch
8-Ports.

XiT4 8
TPD32

Power Distributor in 19” housing/ 2 HU
– 32A 3phase input via 1,5m power
cord and plug, 1 x CEE device sockets
32A on the front. Protection via C16A
circuit breakers. Control light per phase.
3 x Shuko connectors on the front, 3 x
Shuko connectors on the rear, 3 x
PowerCon® 32 on the rear.
