Compact Bass- Reflex Subwoofer
IK15
Compact 15″ bass-reflex subwoofer design
Power
1000W / 2000 W
Impedance
8 Ohm
SPL
134 dB cont.
Weight
25,8 kg. / (59.52 lbs)

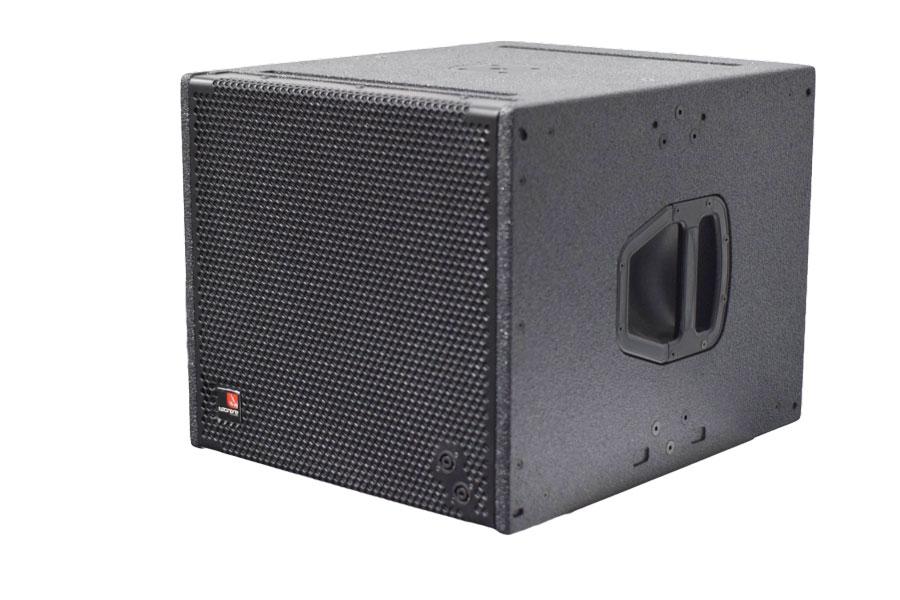

The Tecnare iK15 is a compact, high performance 15″ subwoofer designed to extend the low-frequency response of iK26 and iK26-LT loudspeaker systems. Its bass-reflex acoustic design delivers tight, controlled low-frequency reproduction in a compact enclosure, making it ideal for applications where space, weight and visual impact are critical.
Sharing the same enclosure footprint as the iK26-LT, the iK15 ensures seamless mechanical integration within arrayed systems.
The cabinet incorporates threaded inserts for an optional rigging system, available in both touring and installation versions, allowing the iK15 to be flown as a standalone array or combined directly with iK26-LT enclosures for fully integrated low-frequency extension.
The enclosure is constructed from high grade multiplex plywood and finished with a durable polyurea coating, ensuring long term reliability in demanding professional environments. A heavy-duty steel grille, backed internally with acoustically transparent 3D fabric, provides effective protection while maintaining unrestricted airflow.
Features
• Compact 15″ bass-reflex subwoofer design
• Optimised to extend iK26 and iK26-LT systems
• Shared enclosure footprint with iK26-LT
• Optional touring and installation rigging systems
Applications
• Low-frequency extension for iK26 / iK26-LT systems
• Compact flown or ground-stacked subwoofer arrays
• Theatres and performing arts venues
• Houses of Worship
• Fixed installations and portable sound reinforcement
| Frequency Response¹ | 38 Hz – 100 Hz |
| Frequency Response: Free Field² | 42 Hz – 100 Hz ±3dB |
| Axial Sensitivity @(1W/1m) | 104 dB |
| Lineal Peak SPL Output³ | 134 dB (preliminar) |
| Power (AES / Continuous)4 | 1000 W / 2000 W |
| Rated Impedance | 8Ω |
| Transducers | 1 x 15-inch Neodymium driver, 4” VC Long excursion |
| Recommended Amplifier | T-Series & 44TDAP Series |
| Processing | DP4896 Controller, T-Series & 44TDAP_Series amplifiers |
| Input Connexion | NL4MPXX – SpeakON® (Pair on the back) & NL4MPXX – SpeakON® (Pair on the front) |
| NET Weight | 25,8 kg / (59.52 lbs) |
| Dimensions | 466 x 557 x 430 mm / (18.3” x 21.9” x 16.9”) (LxWxH) |
| Construction | 16mm birch-plywood. Finished in black semi-matt textured Polyurea weatherized coating. Optional rigging system |
| Protective Grille | Powder coated perforated steel with acoustically transparent reticulated fabric on the back |
Compact Installation Systems
Corporate AV and Conference Rooms
Theatres and Houses of Worship
Portable Sound Reinforcement
