Tecnare

CS81

Compact Coaxial

2 way in Ceiling

Speaker

6 inches ceiling speaker
CS81 1
CS81 2

80W (8 Ohms)

CS81 3

60Hz-20kHz

CS81 4

1,9Kg/4,9lbs

CS81 5

8 ohm

CS81 6
Description

The Tecnare CS81, as part as Tecnare Cs Series, is a compact, two-way ceiling loudspeaker, specially designed for background and foreground applications that require premium performance and cost competitiveness.

It brings full frequency response, consistent coverage and intelligibility to a wide range of architectural enviroments- From Hotels and concourses to Retail Outlets, Bars and Restaurants.

  • Two Way Coaxial Passive Loudspeaker

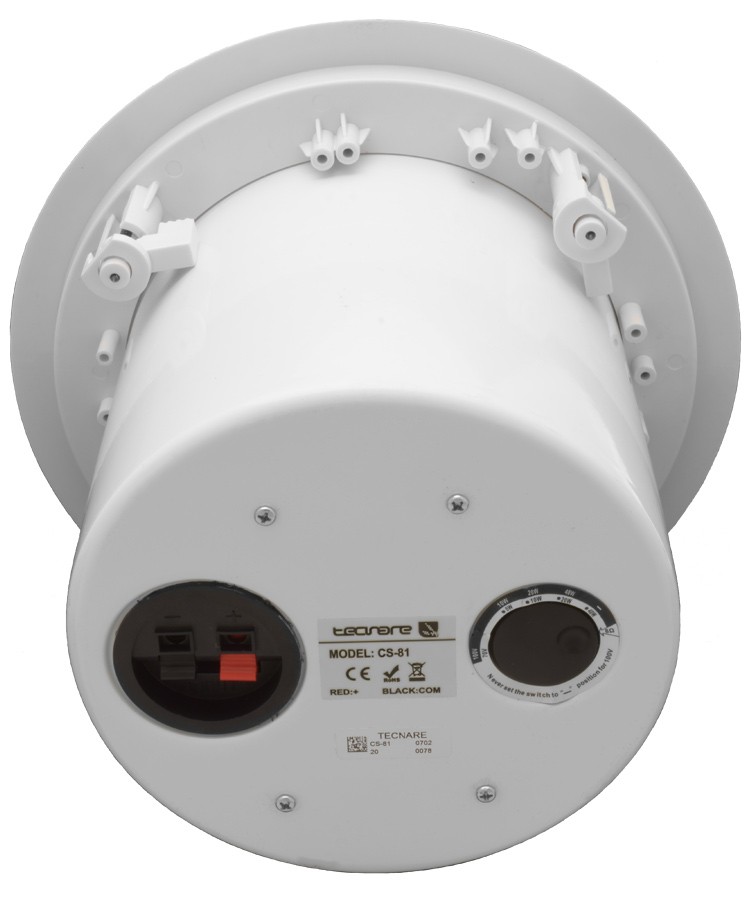

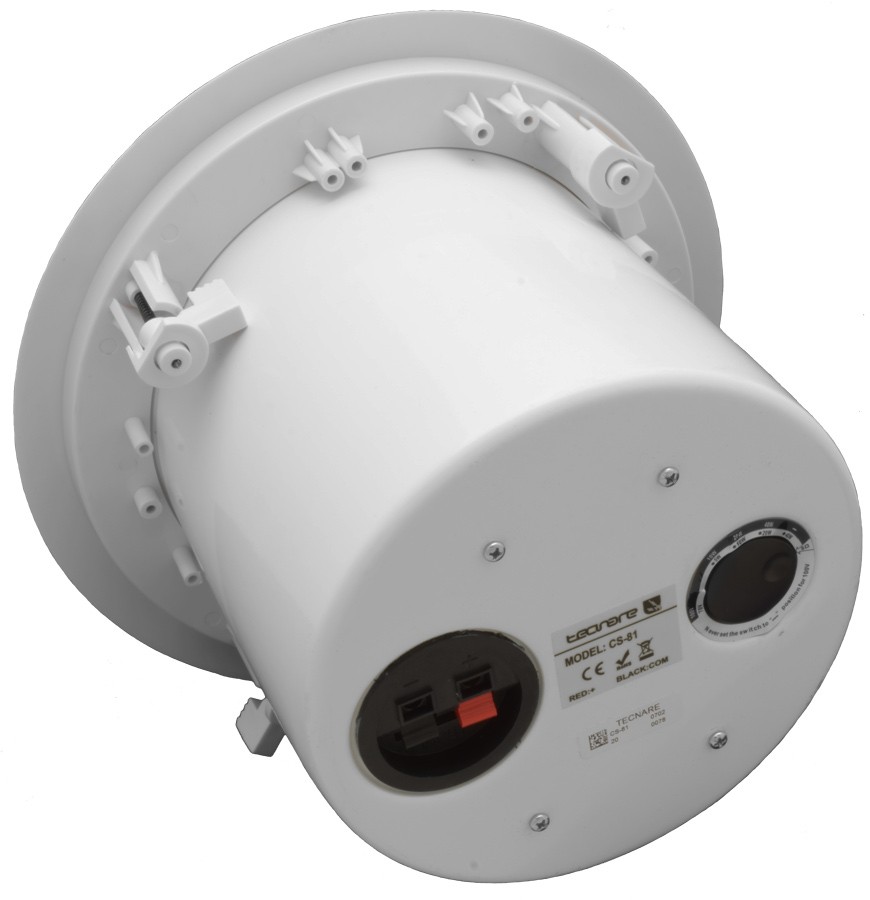

  • Built in 100v transformer with 8 Ohm option
  • With ABS fire back cover ensuring high-end surround sound
  • 4 individual power setting in 100v mode
  • Quick and Easy Ceiling Installation
  • Good for Hi-demand audio enviroment
  • Designed for PA Ceiling Applications
CS81 7
Specifications



CS81
System Type2 Way Coaxial in Ceiling Loudspeaker
Components1×8″Woofer
Power Capacity (AES/Cont/Peak)

80W (8 Ohms)

40w/20W/10W (100v)

Frequency Response60Hz-20kHz
Sensitivity (1W/1m)91dB
EnclosureABS Baffle with steel grille and steel back cover
Nominal Impedance8 ohm
Dimmensions270x185mm/10.63″x7.28″
Ceiling Cutout Size240mm/9.44″
Net Weight1,9Kg/4,9lbs
FinishWhite
CS81 8
Installation
  1.  Cut out a hole in the ceiling
  2. Connect cable to terminal blocks
  3. Put the Speaker inside the hole. Screw the Speaker and install the protection net.
CS81 1
CS81 10

CS81

2 Way Coaxial in Ceiling Loudspeaker

“Built in 100v transformer with 8 Ohm option.”

“4 individual power setting in 100v mode.”

“With ABS fire back cover ensuring high-end surround sound.”
