Tecnare

CS61

High Performance Passive 2-

Way- In- Ceiling Loudspeaker

6 inches ceiling speaker
CS61 1
CS61 2

50W/100W/200W

CS61 3

60Hz-20kHz

CS61 4

1,9Kg/4.19lbs

CS61 5

16 ohm

CS61 6

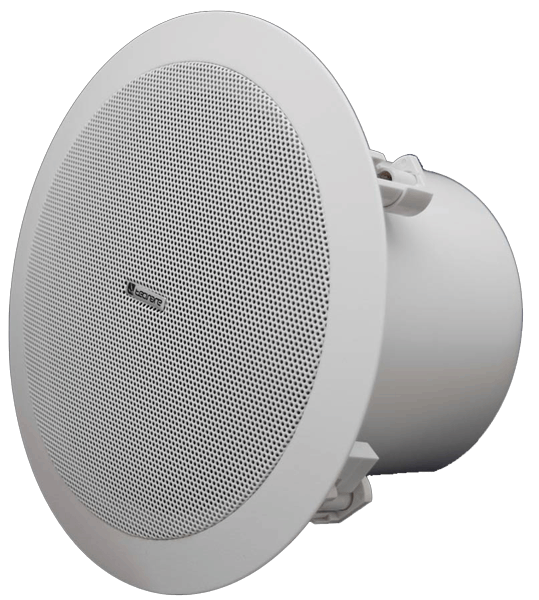

Description

The Tecnare CS61, is the entry level member of the Commercial Series Loudspeaker family. It is a high performance, full range, flush-mount loudspeaker, designed for background music and speech reproduction in a wide range of installed applications. This Coaxial Loudspeaker system features extended low frequency response up to 60Hz.

  • Two Way Coaxial Passive Loudspeaker
  • Broadband frequency response and low distortion
  • Plastic fire dome, ensuring high-end surround sound
  • ABS Speaker
  • Internal Crossover Network to produce clear yet powerful sound
  • Quick and Easy Ceiling Installation
  • Good for Hi-demand audio enviroment
CS61 7
Specifications



CS61
System Type2 Way Coaxial in Ceiling Loudspeaker
Components1×6,5″LF glass fiber cone, rubber edge+2x20mm voice coil HF silk dome
Power Capacity (AES/Cont/Peak)50W/100W/200W
Frequency Response60Hz-20kHz
Sensitivity (1W/1m)89 dB
EnclosureABS Baffle with steel grille
Nominal Impedance16 ohm
Dimmensions235x160mm/9.25″x6.3″
Ceiling Cutout Size205mm/8.07″
Net Weight1,9Kg/4.19lbs
FinishWhite
CS61 8
INSTALLATION
  1. Cut out a hole in the ceiling

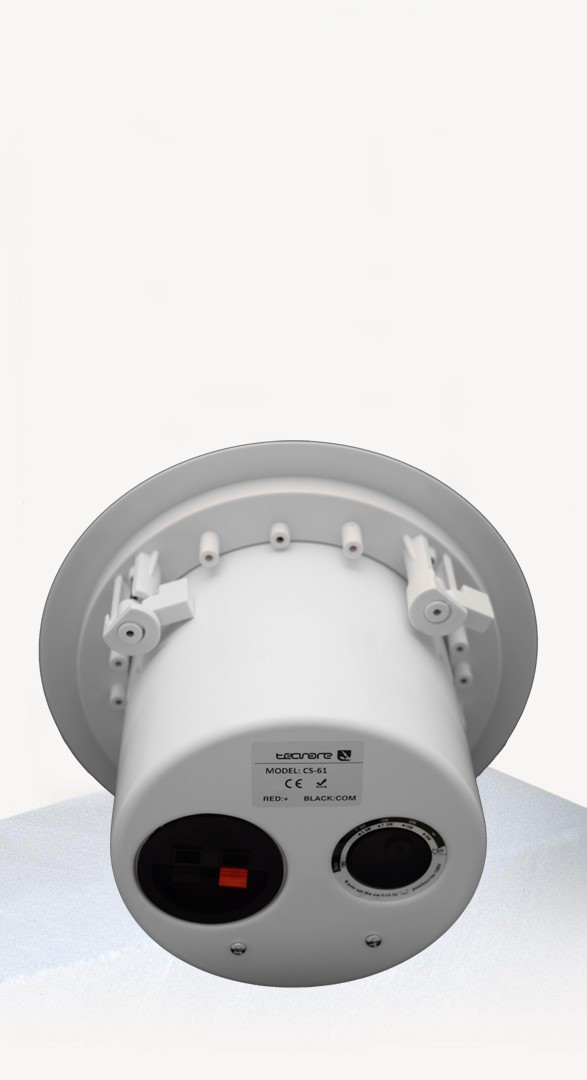

  2. Connect cable to terminal blocks
  3. Put the Speaker inside the hole. Screw the Speaker and install the protection net.
CS61 1
CS61 10

CS61

CS61 11
CS61 12
CS61 13
CS61 14
CS61 15
CS61 16
CS61 17
CS61 18
CS61 19

Two Way Coaxial Passive Loudspeaker

“Quick and Easy Ceiling Installation.”

“Internal Crossover Network to produce clear yet powerful sound.”

“Plastic fire dome, ensuring high-end surround sound.”
