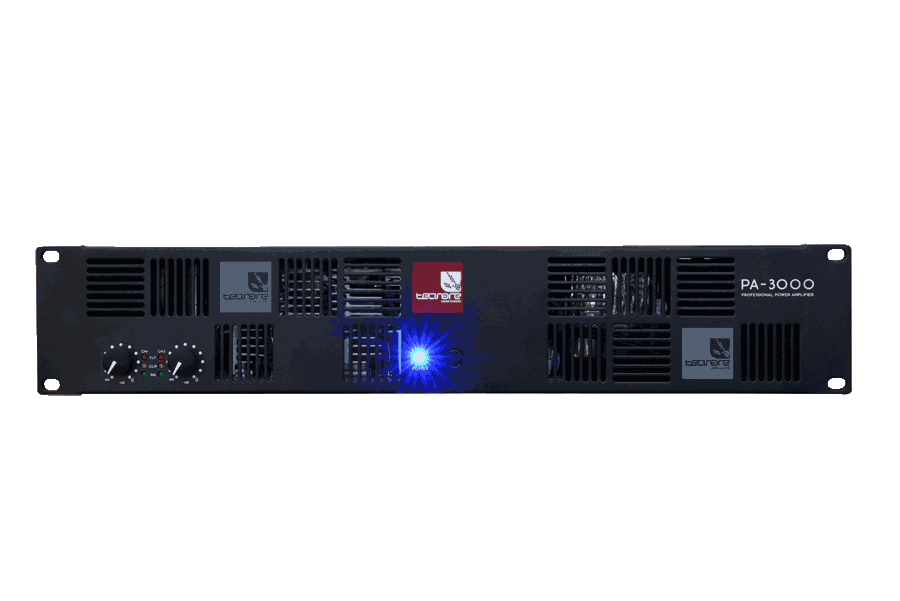

PA 3000

Class H-Power Amplifier



  • 2 channels
  • 2 x 1450W @ 4 Ω





z

2 x 1450 Watt @ 4 ohm / 2 x 1250 Watt @ 8 ohm / 1 x 2900 Watt @ 8 ohm Bridge

Power consumption 800 W

g

Frequency response, 4 Ohm load 20kHz, 4 Ohms, +/- 1dB

19.5 kg (42.99 pounds)

The Tecnare PA Series of power amplifier represent a new era in affordable, high quality performance and reliability with the latest power amplifications technologies. The line consists of five models in a uniform, rugged 2U chassis, the sound quality and durability of class H designs with the innovation of the latest power devices available.

The four models of two channels in the series are the PA900, PA2100, PA3000 and PA5000.

PA3000 is a 2 channel power amplifer that delivers up to 2 x 1450 W RMS @ 4 ohms  (1980 W RMS bridged @ 8 ohms ), weighing just 19,5 kg.

It features independent gain dials, signal – clip and fault LEDs, stereo XLR input and Output link, 1.4 V to 0.775 V input sensitivity switch, mono – stereo – bridge switch, speakON® outputs.
Moreover, it is protected against shorts and open circuits.

Thanks to its high efficiency heat sinks and high speed DC fans, the PA3000 can withstand the hardest heat conditions ensuring great reliability.

Features

  • Easy to configure in stereo / mono / bridge modes
  • Two unit 19″ rack.
  • Front panel signal / clip / protect LED indicators
  • Extensive protective circuits ensure high reliability and operating safety
  • XLR-3 input connectors / SPEAKON® NL4 output connectors

Applications

  • Small and medium size PA systems
  • Disco, club and DJ sound
  • TECNARE systems
  • Public Spaces
  • Mobile and fixed installation

























General Specifications
Number of Channels: 2
Power Output: all channels driven (RMS) 2 x 1450 Watt @ 4 ohm / 2 x 1250 Watt @ 8 ohm / 1 x 2900 Watt @ 8 ohm Bridge
Audio Performance
Voltage Gain 37 dB
Frequency response 4 Ohm load <20Hz to >20kHz, 4 Ohms, +/- 1dB
Inter‐channel crosstalk, worst case combination better than ‐75dBr at 1kHz and ‐58dBr at 20kHz
Total harmonic distortion, THD <0.5%, 20Hz-20kHz
Power Supply
Operation voltage 180-250 V (50/60 Hz)
Power consumption  800 W
Physical
Audio Input Analog:  2x female and 2x male NeutrikTM XLR-3
Amplifiers output    2 x Neutrik SpeakonTM NL4 connectors
Protection  Protection against short circuits, no-load, on/off muting, RF interference.
Ventilation Flow-through ventilation front to back
Enclosure Standard 19” 2U (88mm), 319mm (12.56”)
Net Weight 19.5 kg (42.99 pounds)





R

Small and medium size PA systems

R

Disco, club and DJ sound

R

Public Spaces

R

Mobile and fixed installation

PA900

PA 4.450

PA2100

PA4.1500

PA3000

PA5000
