Compact Line Array Loudspeaker
PULSAR8
Dual 2 × 8″ high-output line array design
Coaxial HF driver (3″+2″) for superior clarity
Custom horn & waveguide for precise coverage
control
Power
1150W / 2300 W
Impedance
8 Ohm
SPL
138 dB
Weight
27 kg. / (59.52 lbs)

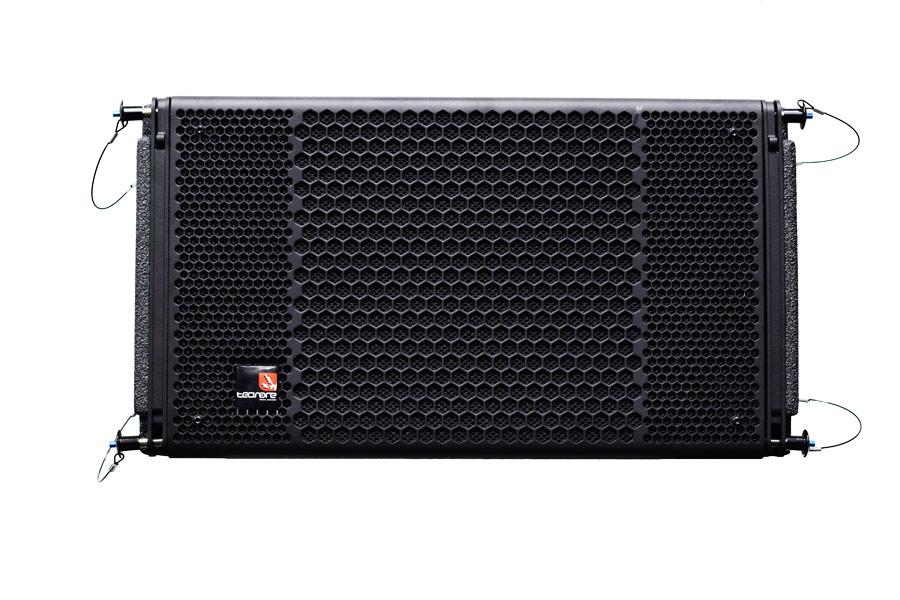

The Tecnare Pulsar8 is a high-performance, compact line array loudspeaker developed to deliver precise and scalable sound reinforcement in demanding professional environments. The system features a dual 8-in neodymium low-frequency configuration, combined with a high-efficiency coaxial MF-HF driver (3″+2″ vc), ensuring excellent output density, clarity and tonal balance throughout the audience area.
At the core of the Pulsar8 is a custom designed high-frequency horn, specifically developed for this model and seamlessly coupled to a dedicated waveguide. This assembly has been optimised to deliver controlled horizontal dispersion and tightly managed vertical directivity, ensuring accurate array coupling, consistent coverage and predictable performance when deployed in multi-element configurations.
The enclosure is constructed from high grade multiplex plywood, providing an optimal balance between rigidity, durability and acoustic performance. The cabinet is finished with a touring-grade polyurea coating and protected by a heavy-duty steel grille, internally backed with acoustically transparent 3D fabric, offering enhanced protection against dust and moisture while preserving sonic integrity.
Designed for bi-amplified operation with external amplification and system processing, Pulsar8 offers maximum flexibility for system engineers, making it an ideal solution for both touring and fixed installation applications.
Features
• Dual 2 × 8″ high-output line array design
• Coaxial HF driver (3″+2″) for superior clarity
• Custom horn & waveguide for precise coverage
control
• Tour-grade plywood cabinet with polyurea
finish
Applications
• Professional touring and rental systems
• Houses of Worship
• Theatres and performing arts venues
• Fixed installations in auditoria and multipurpose venues
• Corporate events and high-end AV productions
| Frequency Response¹ | 60 Hz – 20 kHz |
|---|---|
| Frequency Response: Free Field² | 65 Hz – 18 kHz ±3 dB |
| Axial Sensitivity @(1W/1m) | 107 dB |
| Lineal Peak SPL Output³ | 138 dB (preliminar) |
| Dispersion (HxV) | 100˚ x 10˚ – Waveguide integrate a Constant-directivity horn |
| Power (AES / Continuous)⁴ | 1150 W / 2300 W |
| Rated Impedance | 8 Ω |
| Transducers | 2 × 8” LF cone drivers + 3”–2” coaxial MF-HF driver |
| Recommended Amplifier | T-Series & 44TDAP Series |
| Processing | DP4896 Controller, T-Series & 44TDAP Series amplifiers |
| Input Connexion | NL4MPXX – SpeakON® (Pair) |
| Net Weight | 27 kg (59.52 lbs) |
| Dimensions (L × W × H) | 520 × 533 × 284 mm (20.5” × 21” × 11.2”) |
| Construction | 16 mm birch plywood, black semi-matt textured Polyurea weatherized coating |
| Protective Grille | Powder-coated perforated steel with acoustically transparent reticulated fabric on the back |
Professional touring and rental systems
Houses of Worship
Theatres and performing arts venues
Fixed installations in auditoria and multipurpose venues
Easy Rigging
